Mechanical Engineering Student @ Hofstra | Incoming Engineering Intern @ Stellant Systems | CAD, GD&T, FEA, Thermal Design & Additive Manufacturing
Mechanical Engineering student building CAD-driven, simulation-supported, and manufacturing-ready hardware projects across thermal design, FEA, GD&T, additive manufacturing, and aerospace/defense systems.
Mission Brief / About
I am a Mechanical Engineering student at Hofstra University, Class of 2027, focused on mechanical design, CAD modeling, additive manufacturing, GD&T, manufacturing systems, and hands-on engineering problem solving.
I will be joining Stellant Systems as an Engineering Intern/Co-op in Melville, NY, where I am continuing to build experience in high-performance engineering and manufacturing environments. My technical foundation includes SolidWorks, Siemens NX, GD&T using ASME Y14.5, 3D printing, prototyping, MATLAB, FEA, thermal simulation, and engineering documentation.
I enjoy bridging digital design and physical hardware through modeling, prototyping, troubleshooting, fit checks, and manufacturing documentation.
Featured Technical Dossier
ENGG 114 Heat Transfer Design Project | CAD + MATLAB + Fusion 360 + DFMA

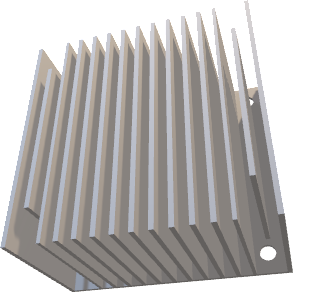

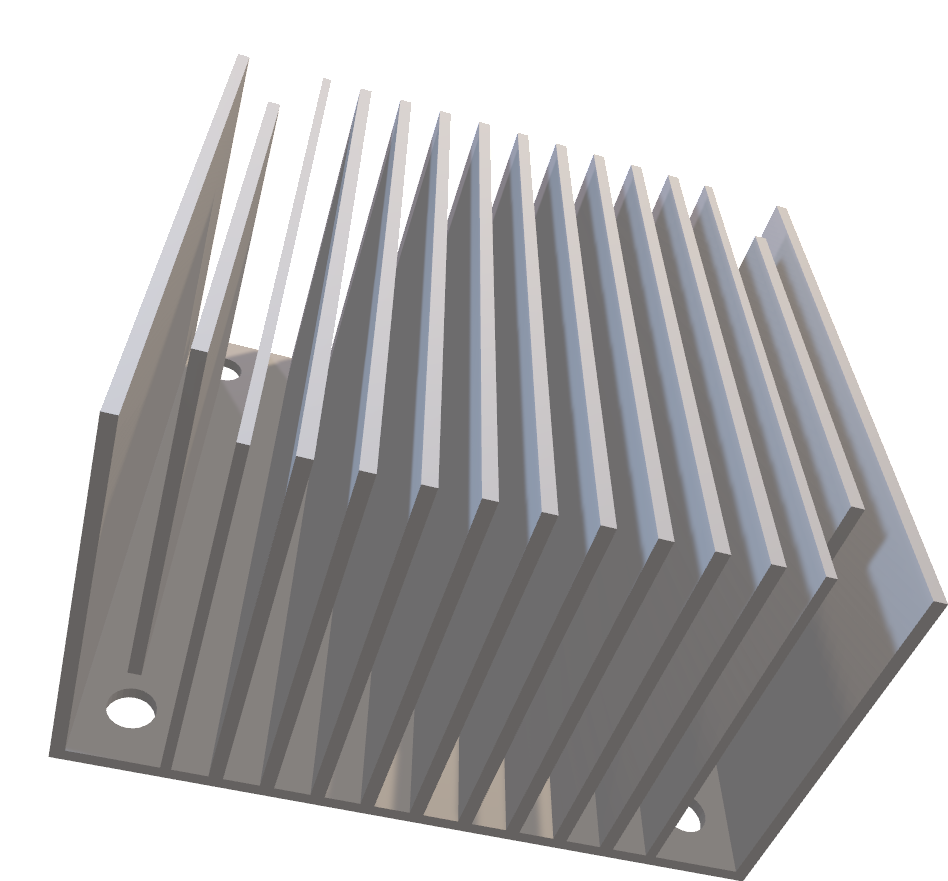

Project B developed a forced-convection heat sink for a desktop CPU chip with a 100 W steady-state heat load, 25°C ambient air, an official chip temperature limit of ≤85°C, and an internal derated target of ≤70°C. The final selected design is a 15-fin Al-6061 plate-fin heat sink derived from a 17-fin thermal baseline.

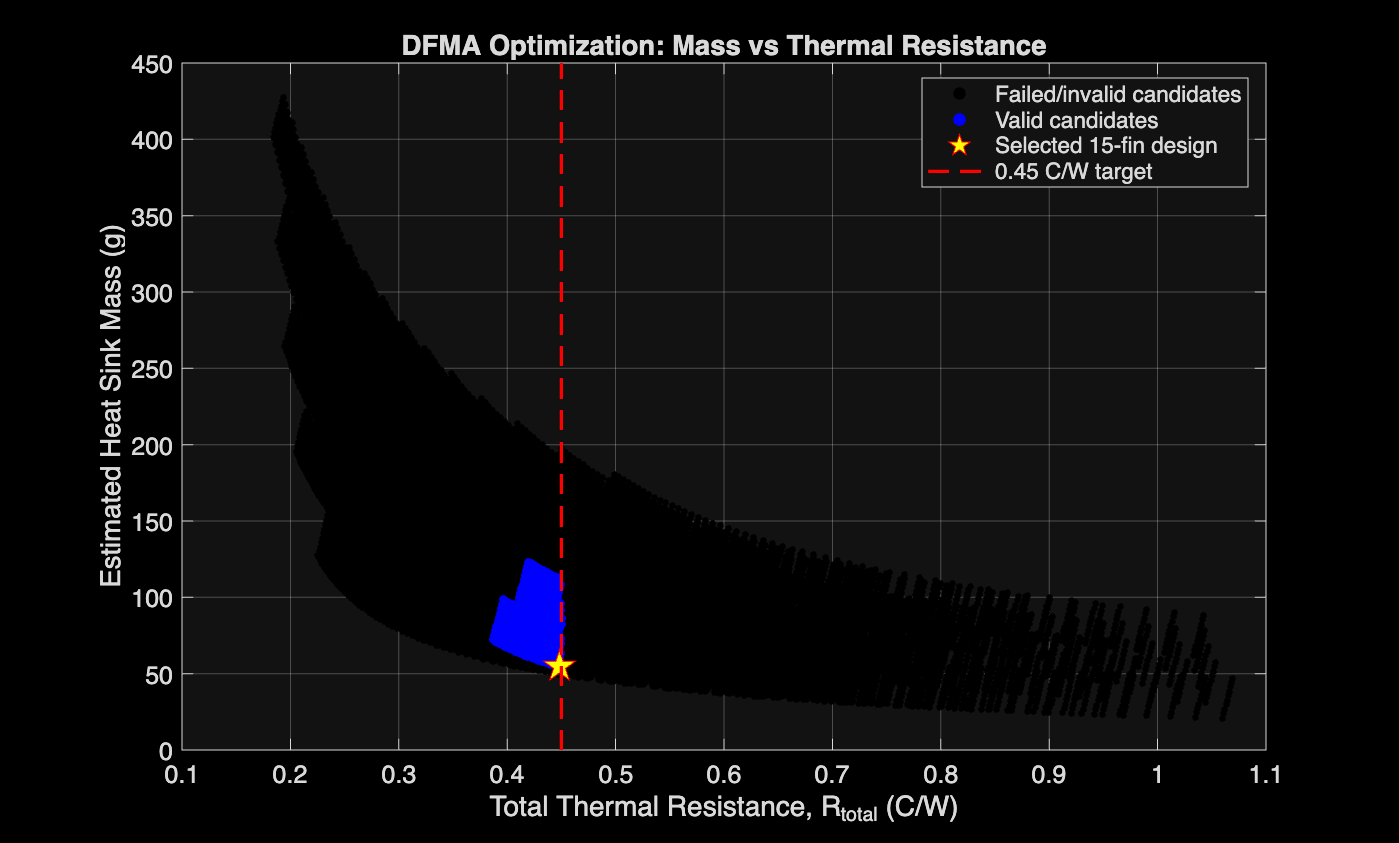

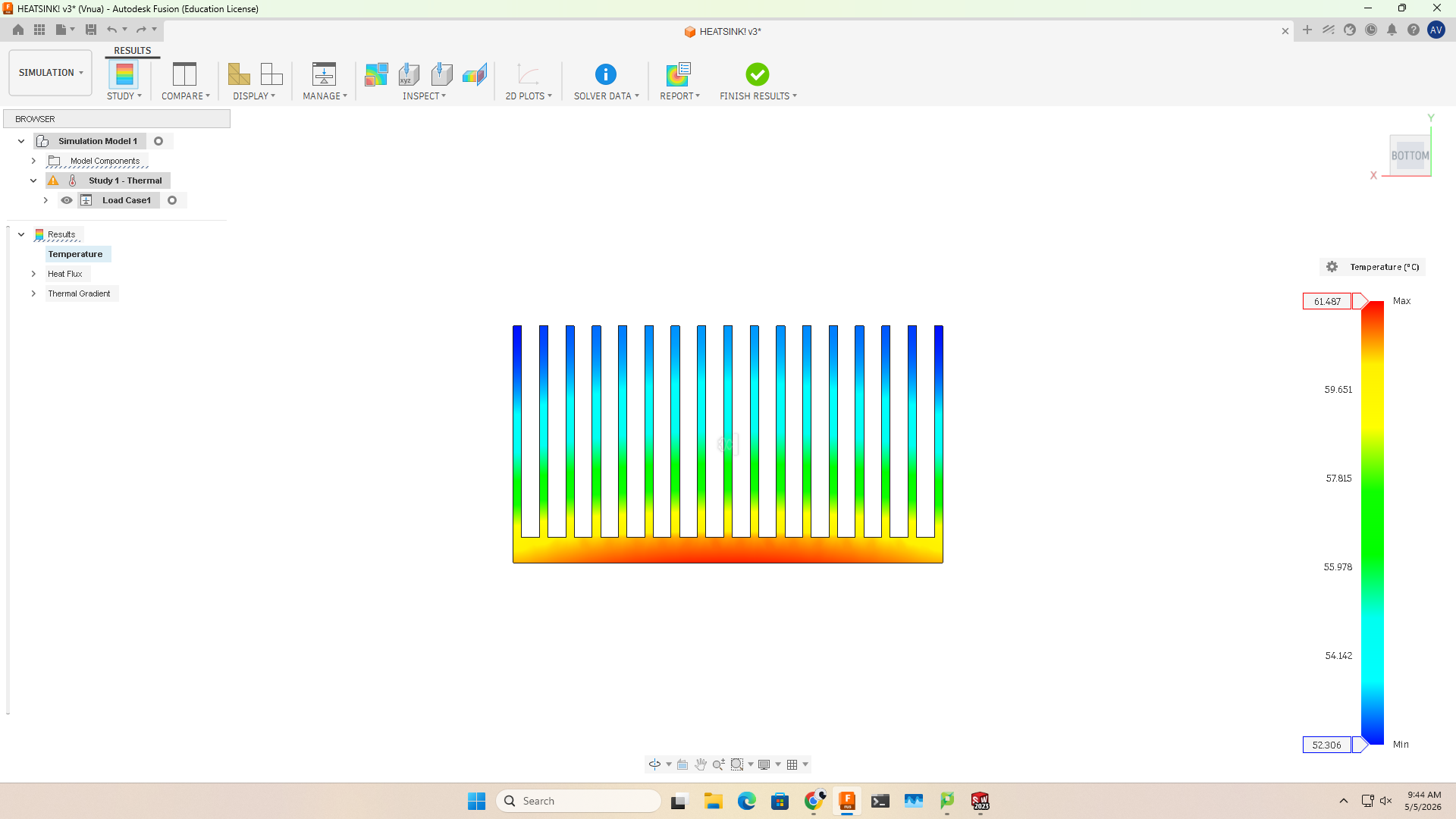

MATLAB predicted a total thermal resistance of 0.4485 °C/W and a chip temperature of 69.85°C for the final 15-fin design without an added TIM/contact penalty. Fusion 360 predicted a maximum temperature of 69.775°C for the final model under the modeled boundary conditions.

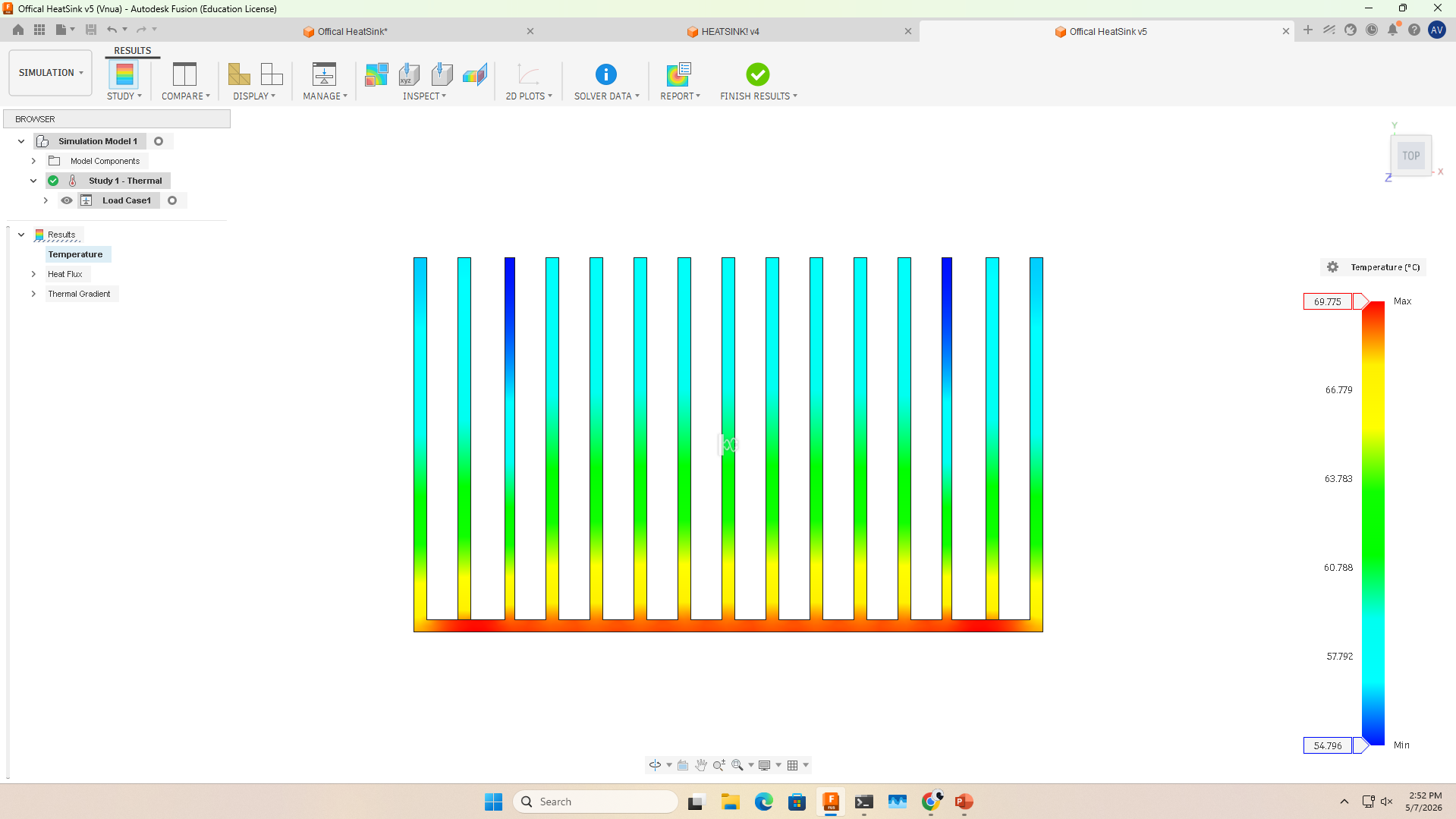

The 17-fin baseline achieved a lower predicted temperature, but the selected 15-fin design was the stronger engineering choice because a thermal-only optimum is incomplete. The final design balances modeled thermal performance with manufacturability, tool access, airflow spacing, mounting practicality, lower mass, and prototype readiness.
The selected layout considers the heat sink as part of a larger hardware stack: fin spacing for airflow, tool access for fabrication, mounting practicality, mass, and interface readiness all inform the final 15-fin geometry.
Fusion 360 and MATLAB results are treated as simulation-supported predictions, not real-world validation. Prototype testing at 100 W and approximately 25°C ambient is required before making real-world performance claims.
Modeled Boundary Conditions
Engineering Project Archive
Each project is framed around engineering context, responsibilities, methods, outcomes, and available artifacts.
Thermal Design / DFMA
Professional Development
Industrial Systems
Simulation / Process Analysis

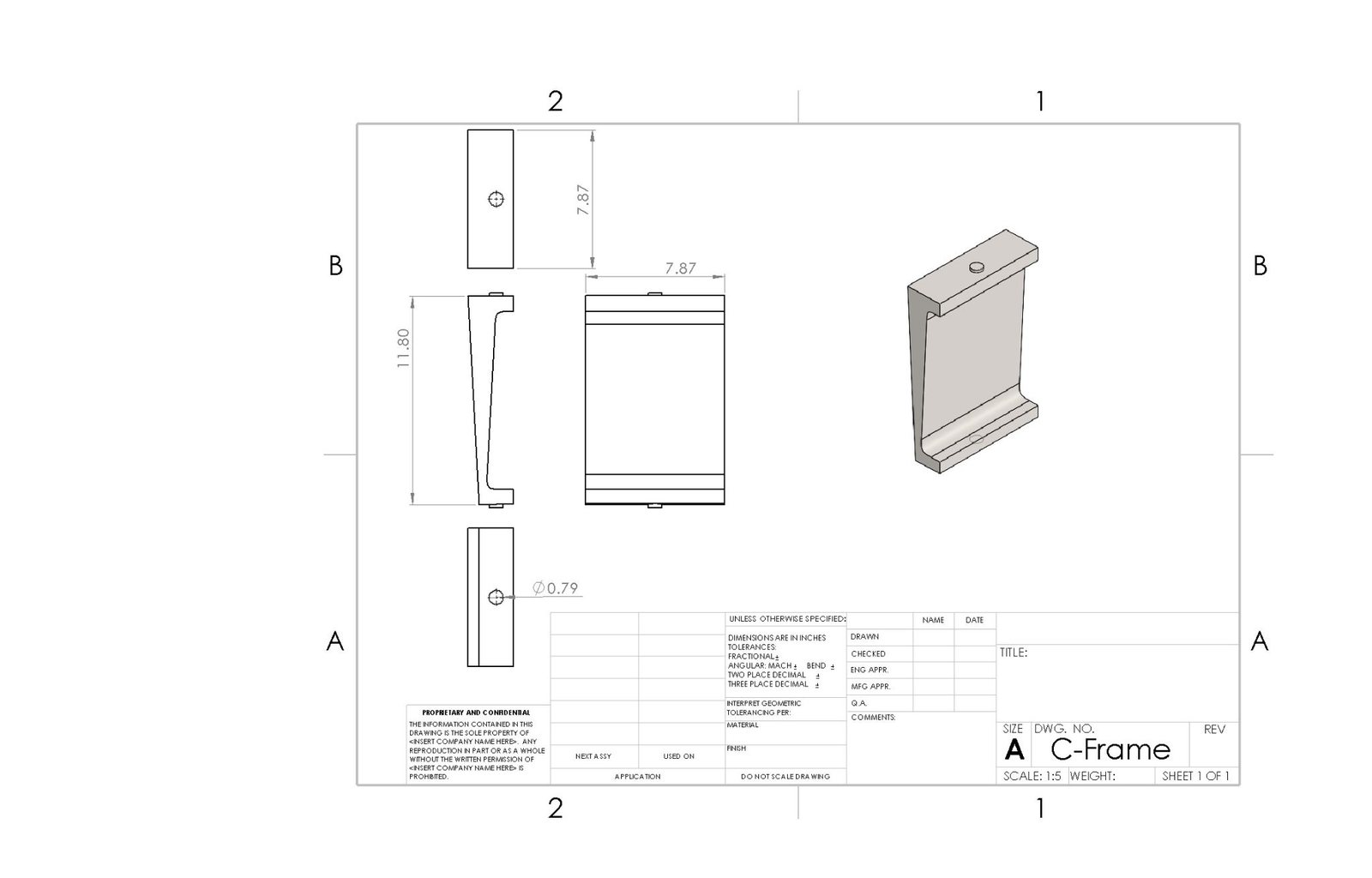

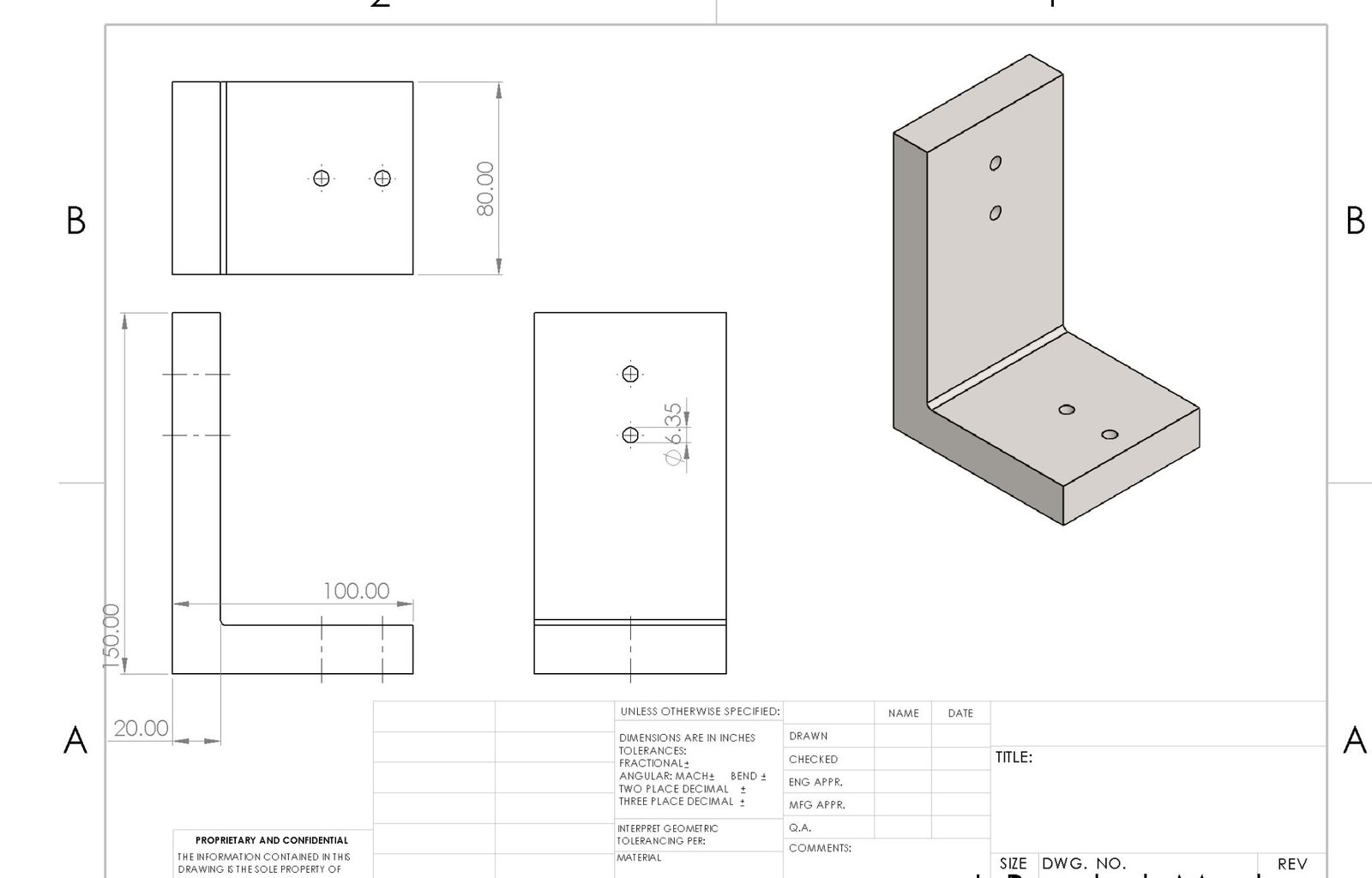

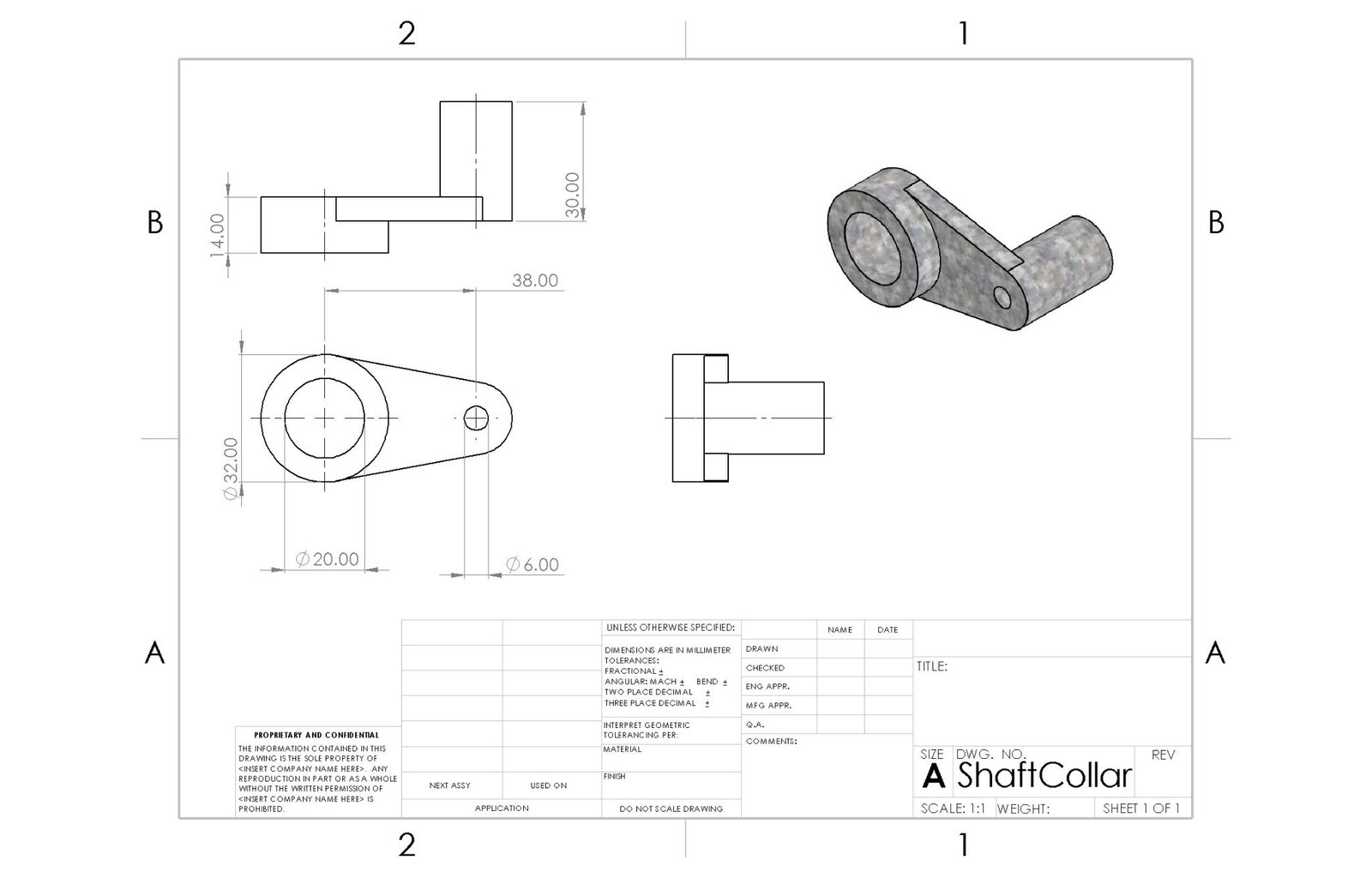

GD&T / Drawings

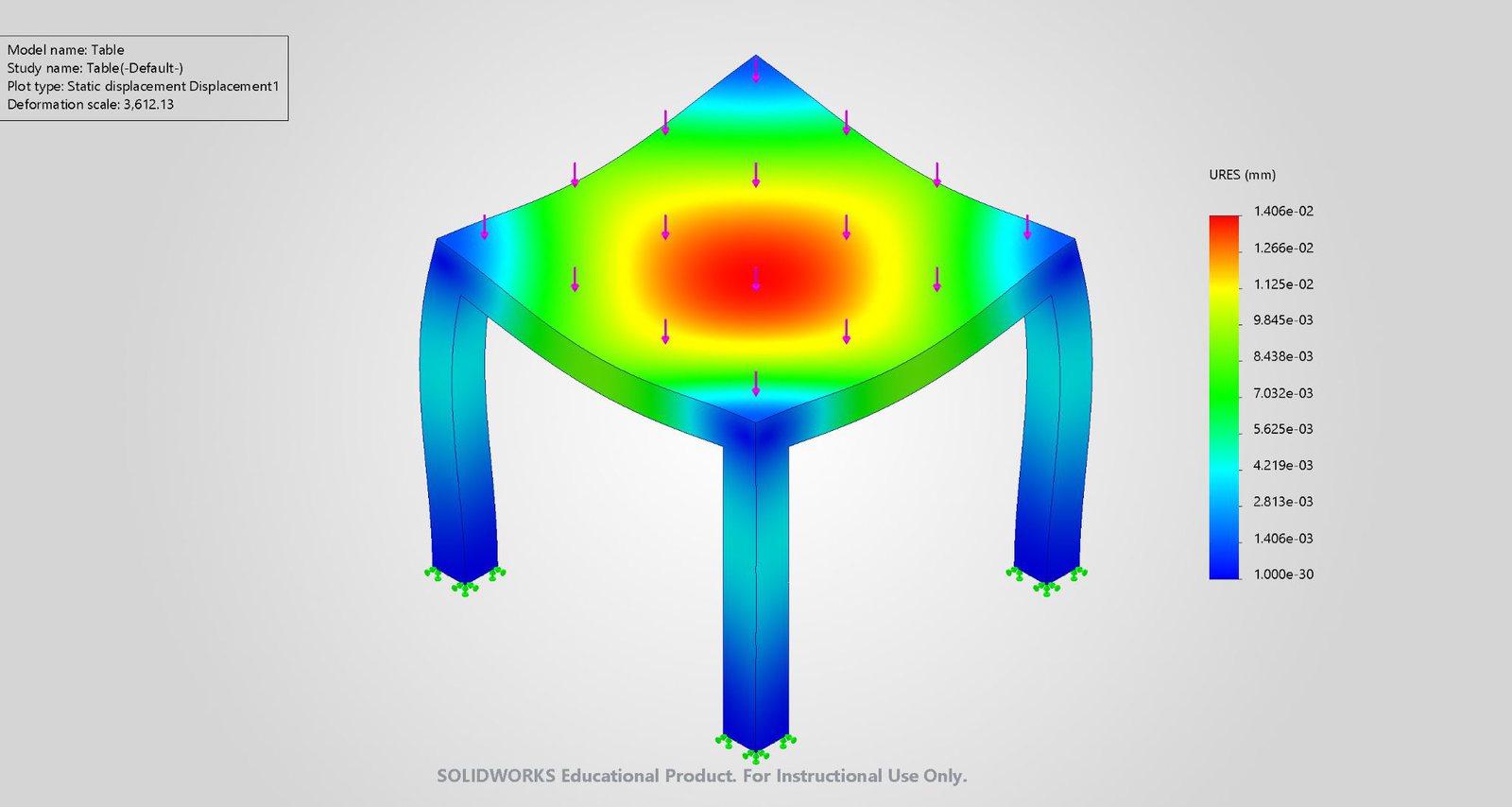

FEA / Structural Analysis

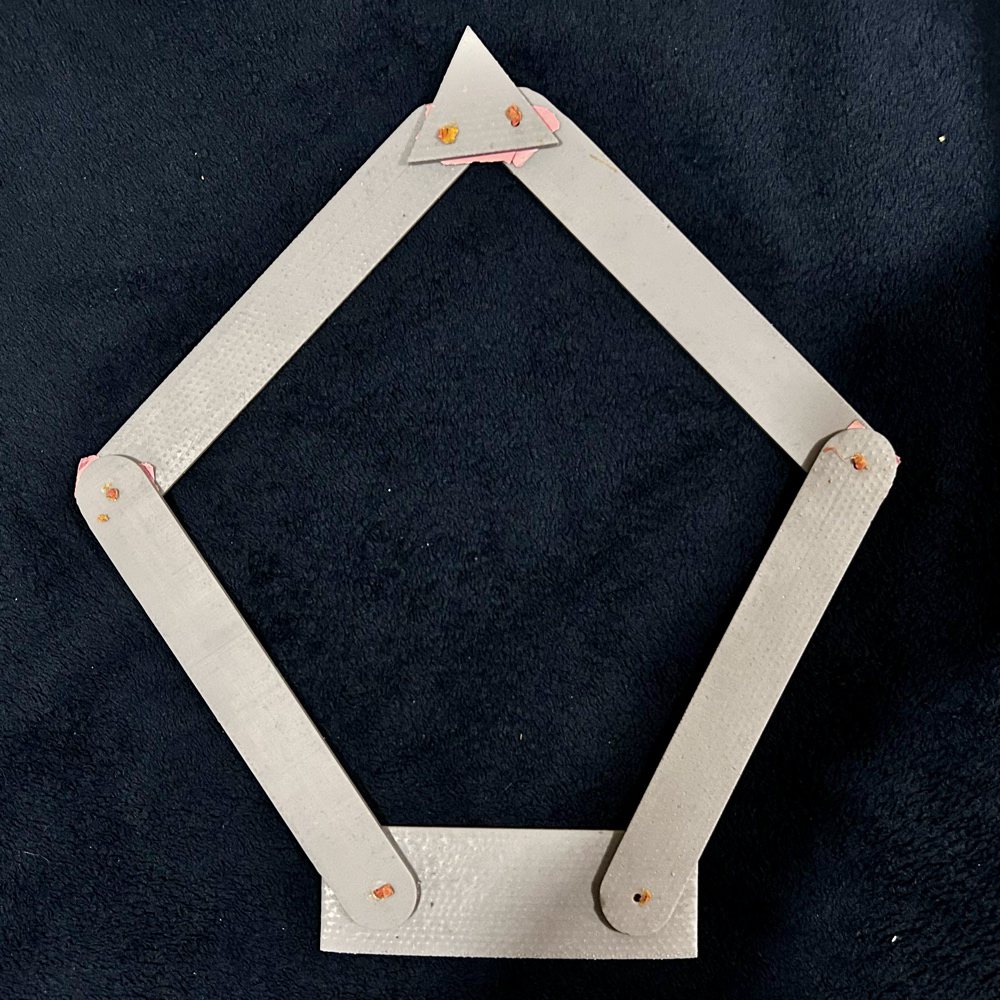

Additive Manufacturing

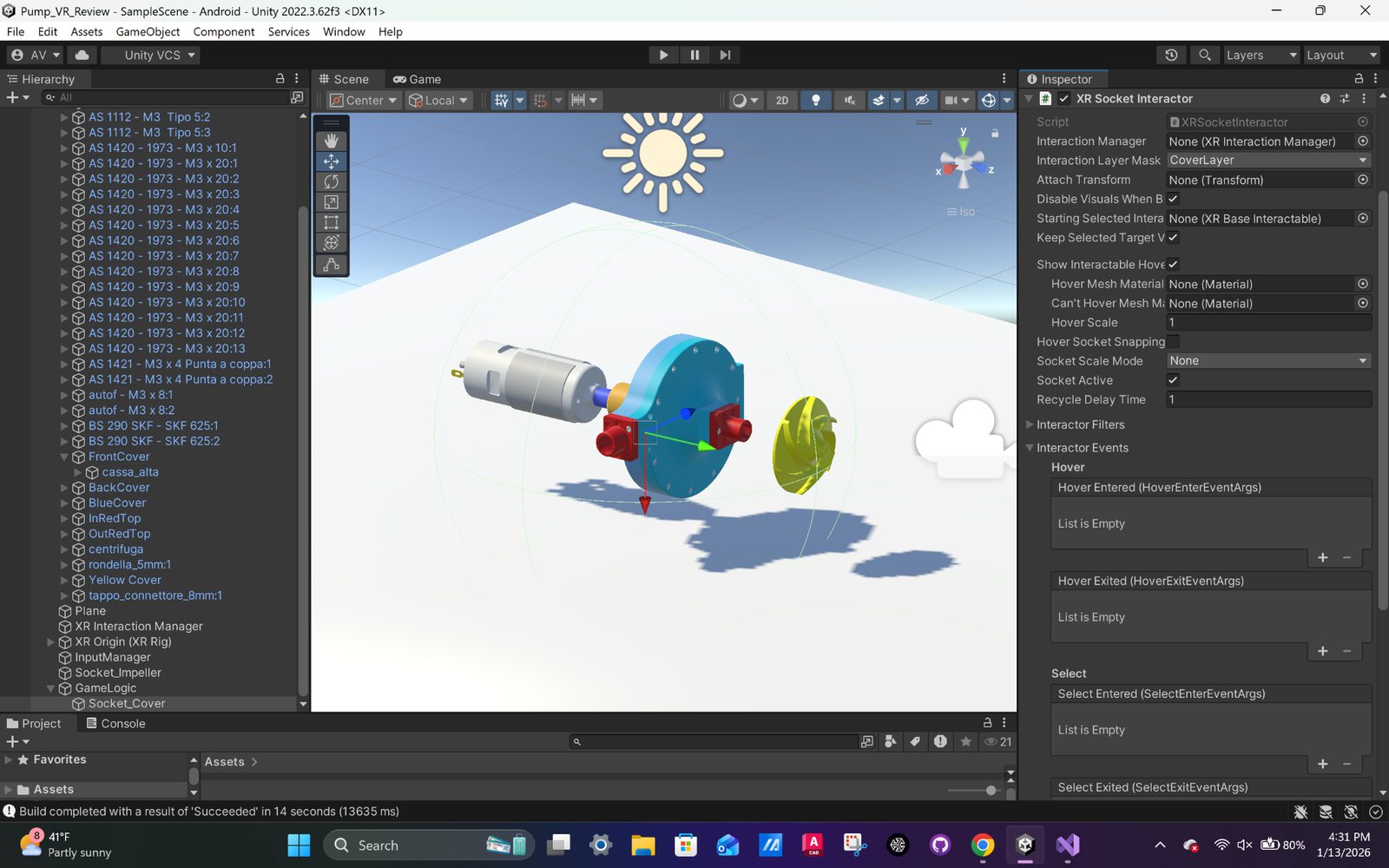

Digital Twin / Assembly Logic
Leadership / Technical Community
Skills & Toolchain
Credentials / Mission Readiness
Council for Six Sigma Certification
Certification Date: November 16, 2025
View certificate
Completed: 1/8/2026
3.0 Professional Development Hours
View certificate
Certificate of Completion - January 26, 2026
Black Hawk Maintenance & Diagnostics; Logistics & Mission Readiness
View certificate PDFLeadership & Experience
Incoming role focused on applying mechanical engineering, CAD, manufacturing, and technical documentation skills in a professional engineering environment.
This portfolio presents public academic, certification, and student-project artifacts only. Future professional hardware experience will be summarized conservatively when it is appropriate for public sharing.
Direct a 5-person executive board for professional development programming supporting 50+ engineering students, with outreach tied to workshop attendance and student engagement.
Collaborating with engineering faculty and student peers to reactivate Hofstra's SHPE chapter and build a sustainable mentorship and resource pipeline for minority STEM students.
Support recruitment, technical networking, industry-mentor connection, external communications, and technical workshop coordination.
Built customer-facing communication, product knowledge, team collaboration, and fast-paced professional service experience.
Resume / Download Dossier
The resume PDF includes education, technical skills, heat sink project work, leadership, and the incoming Stellant Systems internship/co-op listing.
Contact
Interested in mechanical design, CAD, GD&T, FEA, thermal management, additive manufacturing, manufacturing systems, aerospace/defense hardware, and hands-on product development roles.
